Industrial Hard Capsule Machine automatic Gelatin Capsule Making Machine

Name: Industrial Hard Capsule Machine automatic Gelatin Capsule Making Machine
Brand: Canaan Kaixinlong
Price: 38000 USD

Cheap Industrial Hard Capsule Machine automatic Gelatin Capsule Making Machine for sale

Brand Name : Canaan Kaixinlong

Model Number : CFK-2500

Place of Origin : Wenzhou China

MOQ : 1

Price : 38000$

Payment Terms : L/C, T/T

Packaging Details : The size of non-fumigated wooden cases varies according to the size of the machine

Output : 2500（Capsules/min）

No.of segment bores : 18

Suitable fof capsule : 00#-5#

Total power : 8Kw(standard)

Overall weight : 1650Kgs

Overall diemensions : 1230mm×1175(+382)mm×1955mm

Contact Now

Overview of the machine:

Capsule Factory Medical Capsule Filling Machine Pharmaceutical Factory

CFK-2500 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.

The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output	2500Capsules/min
No.of segment bores	18
Suitable fof capsule	00#-5#
Total power	8Kw(Standard configuration)
Overall weight	1650Kgs
Overall diemensions	1230mm×1175(+382)mm×1955mm
Noise	≤75DB(A)
Pressure	0.4 ~ 0.7Mpa
Air consumption	≤9m³
Vacuum	-0.03 ~ -0.06Mpa
Filling error	±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

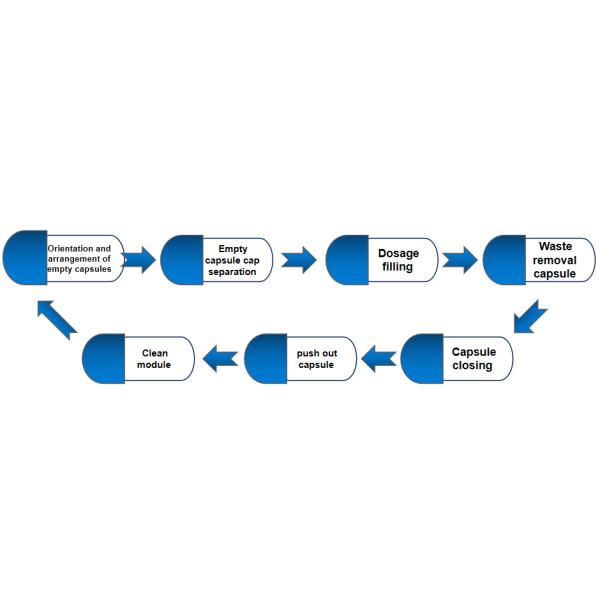

The process of capsule filling:

Industrial Hard Capsule Machine automatic Gelatin Capsule Making Machine

Expansion diagram of the working principle:

Industrial Hard Capsule Machine automatic Gelatin Capsule Making Machine

Sort of empty capsule:

principle

The seeding tube is equipped with multiple circular holes and communicate with the capsule hopper, and the channel is equipped with capsule tablets.

The seeding sac tube slides up and down to drop the empty capsule into the pore channel. When the seeding capsule tube goes up, the capsule piece will jam the capsule. When the seeding tube falls down, the capsule holder rotates and drives the capsule to release the capsule, and the capsule falls out of the hole.

Industrial Hard Capsule Machine automatic Gelatin Capsule Making Machine

Orientation of the empty capsule:

Broadcast description

The capsule head always acts in the middle of the capsule body, and the capsule head pushes the capsule to make a U-turn movement, which always pushes the capsule body to the edge of the capsule comb, and then presses the capsule head down to turn the capsule over and push it vertically into the module hole.

principle

1. The thrust point of the capsule head is on the capsule body;

2. The width of the chute is smaller than the outer diameter of the capsule cap, which is larger than the outer diameter of the capsule body. It only has a tightness effect on the capsule cap and does not contact with the capsule body.

Orientation of the empty capsule

Industrial Hard Capsule Machine automatic Gelatin Capsule Making Machine
